Jobs
The Job pages allow you to manage Discovery jobs (Inbox scans) and Remote connection jobs.
Job page options:
-
Discovery jobs
-
Remote connection jobs

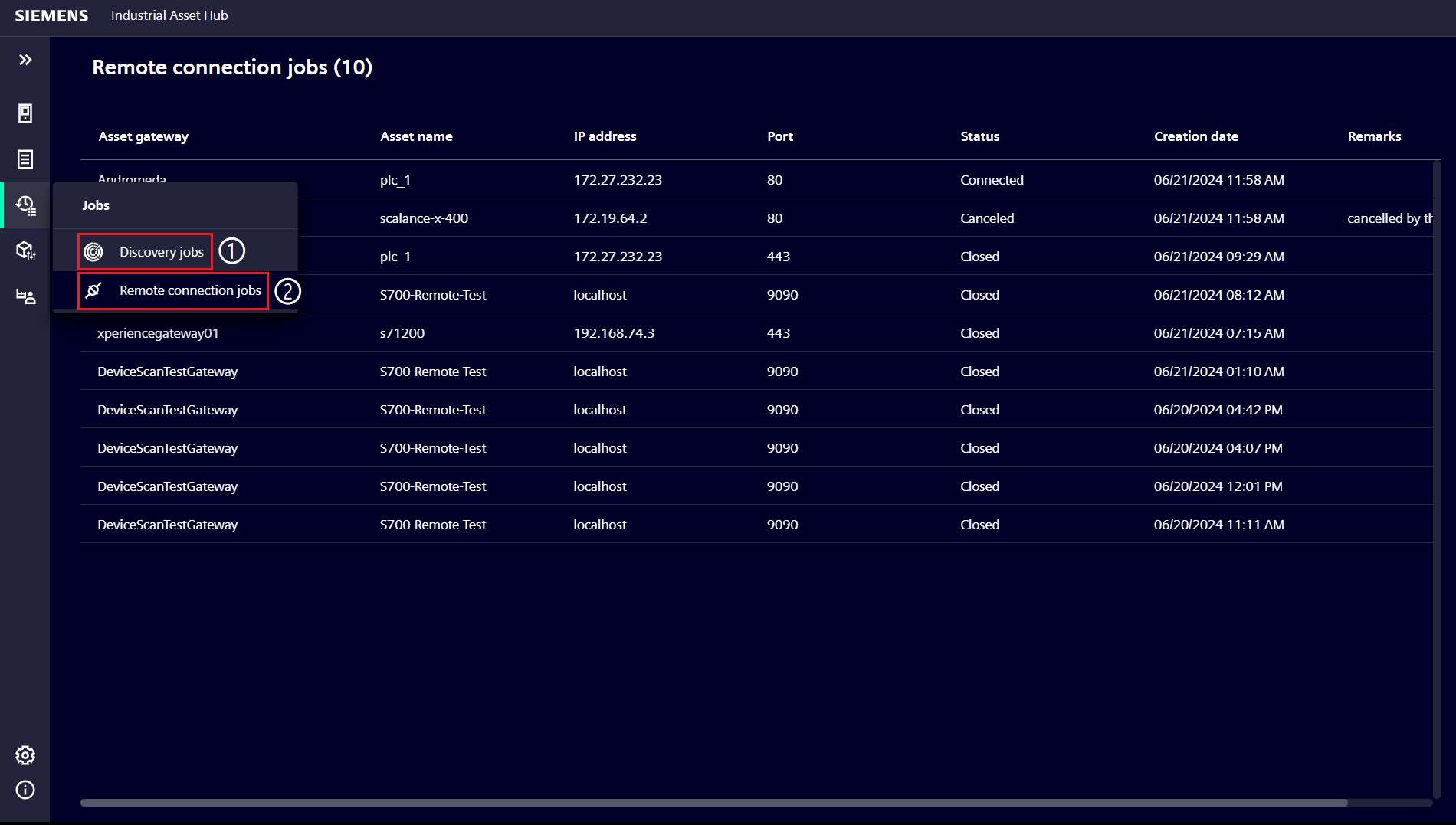

Figure: Job page selection
Customize the Job pages
Sort the job lists
Every column on the Job pages can be sorted.
Sort a column by clicking on the column title. The column is marked with an arrow. Click on it to switch between descending or ascending.
Discovery jobs
Inbox scans create one or more Discover jobs, depending on the selected Asset link or made Asset link settings. Information on the status of the ten latest Discovery jobs are shown on the Discovery jobs page. Also, additional information are provided, and it allows you to perform actions on the Discovery jobs.
Discovery job information
Each job has its essential information displayed at a glance. The job status, the name of the Asset Gateway, the Asset Gateway version, the count of discovered assets and the configured Asset link for the Discovery job are displayed. The date and time, when the job was created, are displayed as well. Scans with multiple Asset links lead to more than one discovery job, so that all of them need to be selected to e.g. stop the entire scan.

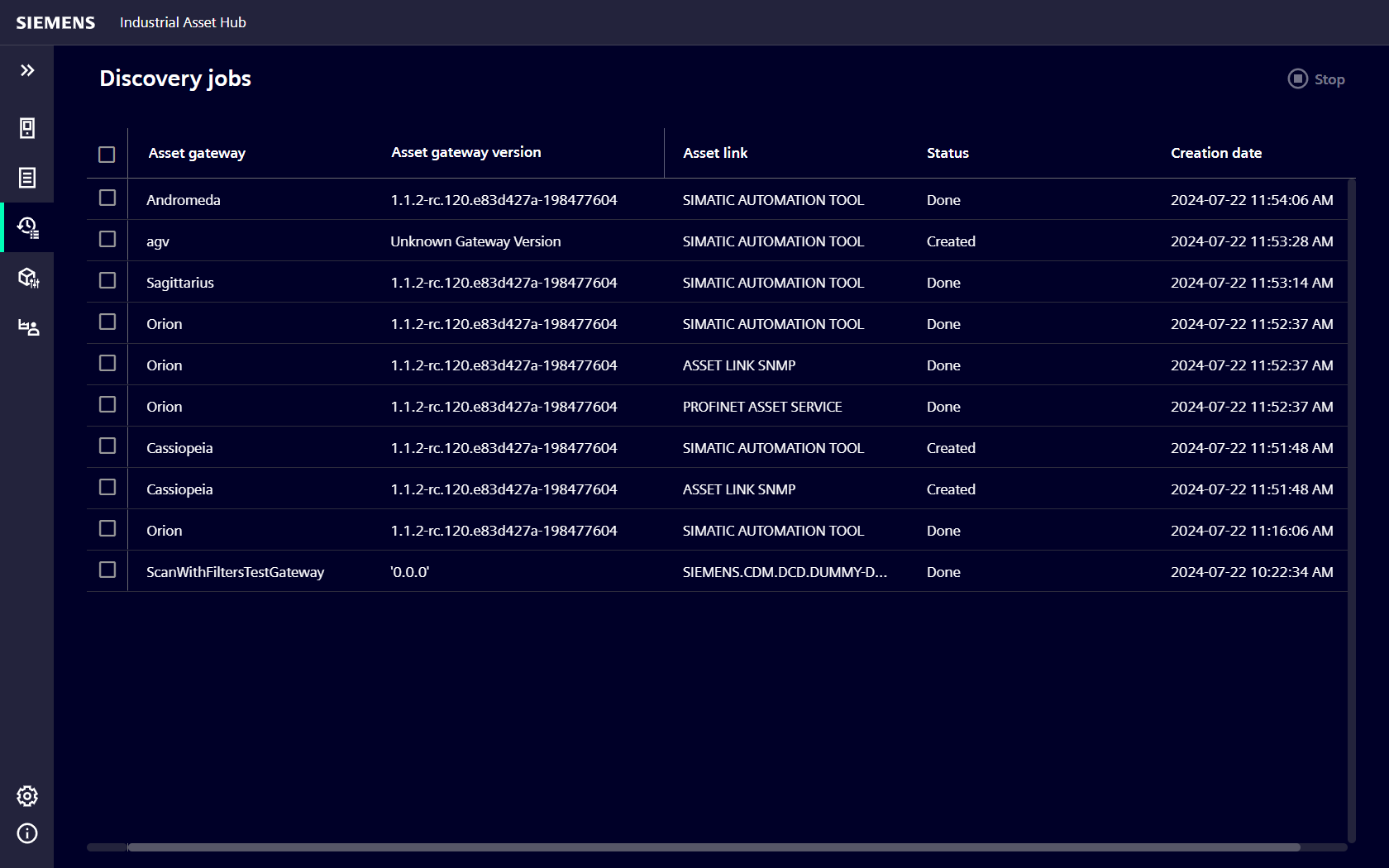

Figure: List of discovery jobs
Discovery job actions
The Stop action can be started for each job by selection.
| Action | Description |
|---|---|
| Stop | Selected discovery jobs are stopped for jobs in progress. |
The following table shows in which job state an action can be performed.
| State | Stop action |
|---|---|
| Created | Yes |
| Started | Yes |
| Done | No |
| Failed | No |
| Canceled | No |
Action 'Stop'
-
Select a job in progress via checkbox.
-
Perform the Stop action by clicking the respective icon.

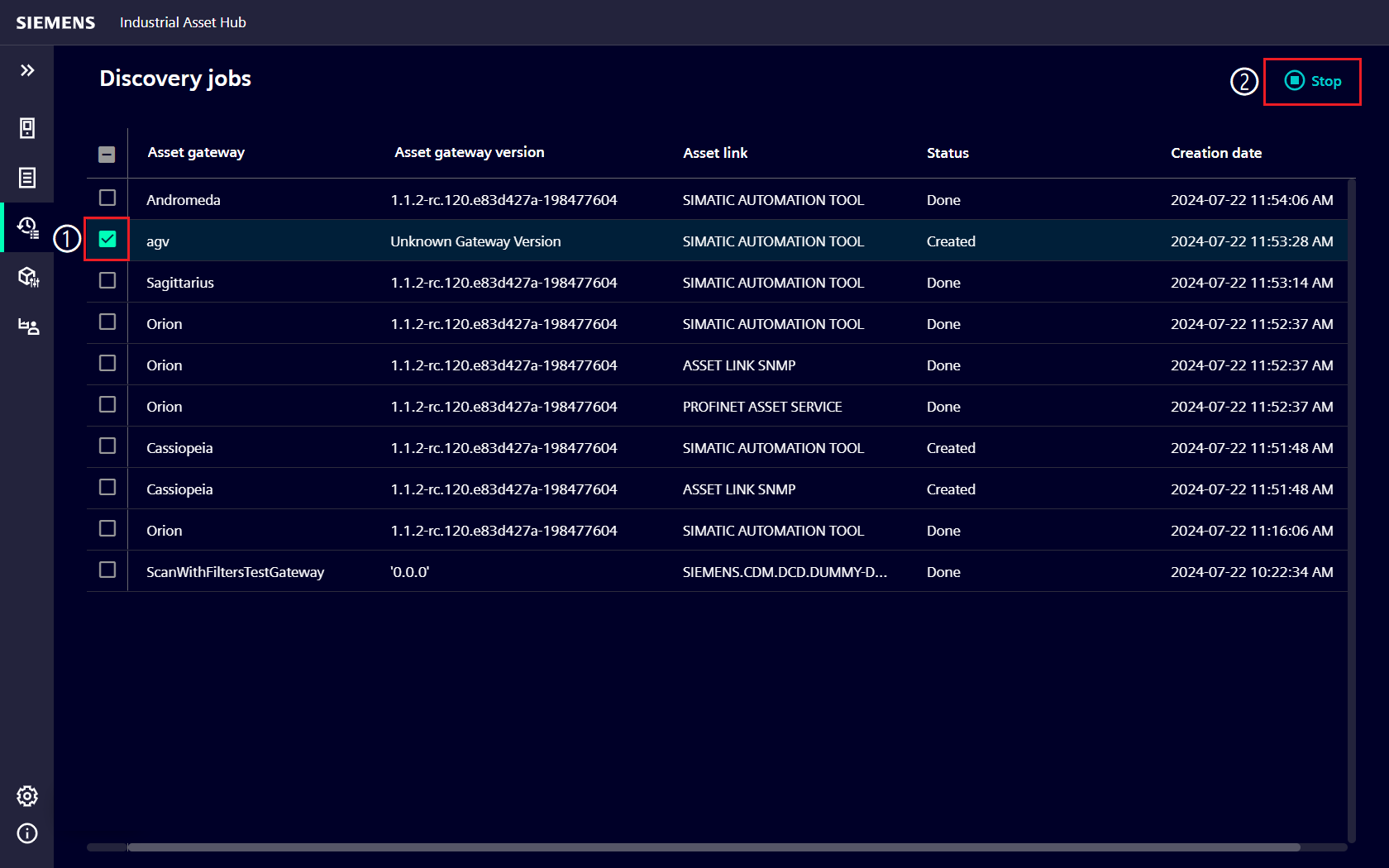

Figure: List of discovery jobs with one selected job in progress
-
A dialog appears in order to confirm the stop of the job. Click on Confirm. A toaster indicates the successful stop for the selected job. The status of the job changes appropriately.
Remote connection jobs
Information on the status of the 10 latest Remote connection jobs are shown on the Remote connection jobs page. Also, additional information are provided.
Preconditions:
- Admin or Supervisor role
- Device has a valid IP address and is associated with a Asset Gateway ID
For further information, refer to Access management page.
Remote connection jobs Information
-
When connection is established
Each job has its essential information displayed at a glance. The Asset Gateway name, the Asset Gateway version, the name of the asset, IP address, Port and the status for the Remote job are displayed. The date and time, when the job was created, are displayed as well. -
When connection is terminated
For each terminated/failed job, additional information is displayed in the Remarks column.

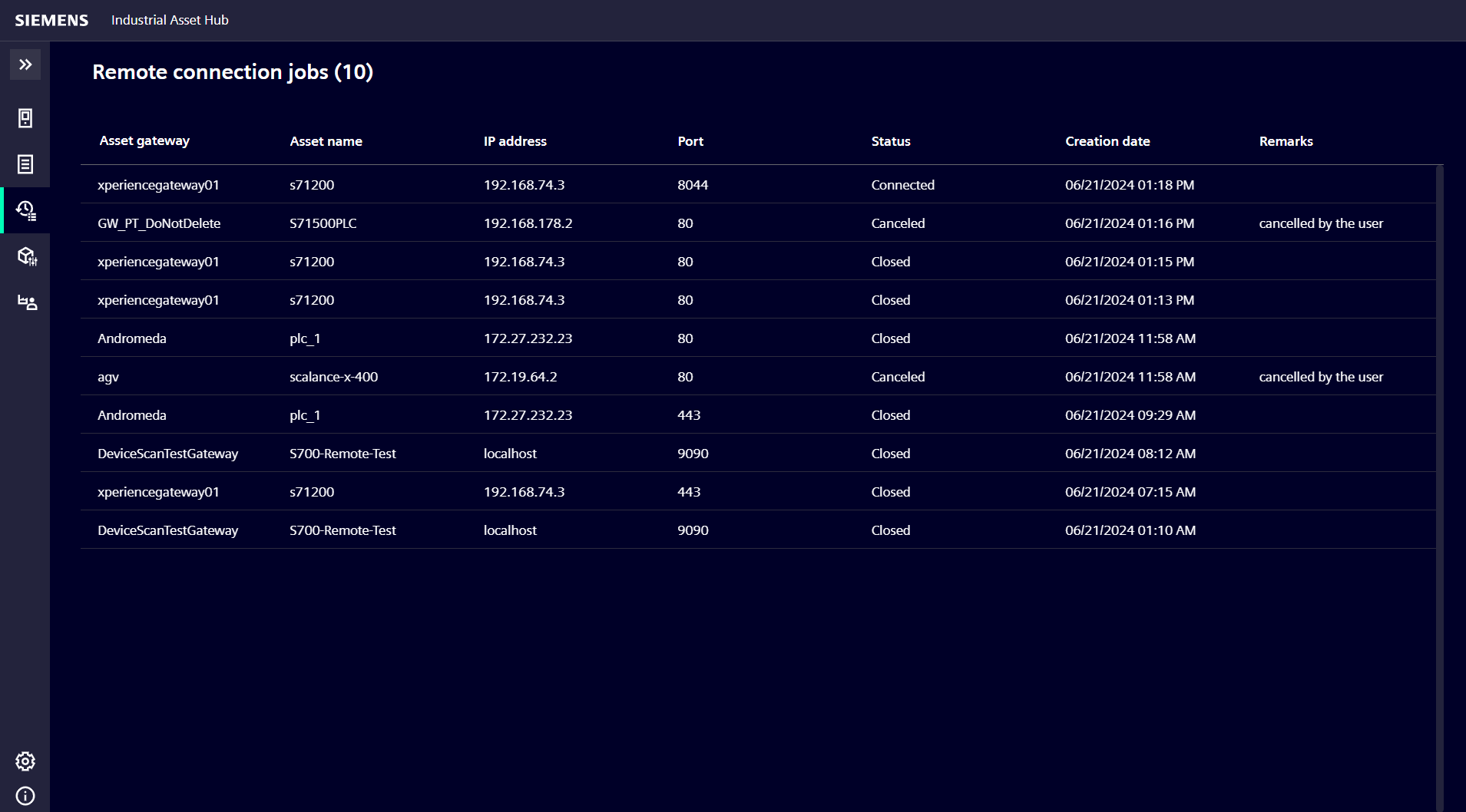

Figure: List of Remote connection jobs
