Programming Interface

Industrial Asset Hub consists of a growing amount of services supporting our users.

The platform is experienced via a centrally hosted cloud service. The shop floor instances are reached out via gateway applications, consisting of the Asset Gateway and one or more Asset links. The application is hosted on Industrial Edge or as docker-compose on every machine which can run containers.

Industrial Asset Hub
Industrial Asset Hub
Interfaces
Interfaces
Shopfloor
Shopfloor
Inventory
Inventory
User
User
Online Documentation
Online Documenta...
IAH User Interface
IAH User...
Admin Console
Admin Conso...
Remote
Access
Remote...
Remote Access Tunnel
Remote Acce...
Gateway Management
Gateway Management
Job Management
Job Management
Remote Access Service
Remote Access S...
Access
Management
Access...
Discovery Service
Discovery Service
Inventory Service
Inventory Service
Onboarding Service
Onboarding Service
Wfx gatekeeper Service
Wfx gatekeeper Service
Remote Access Service
Remote Access Service
Authorization Service
Authorization Service
AssetIAM service
AssetIAM service
Messaging Services
Messaging Services
Asset Gateway
Asset Gateway
Asset Link API
Asset Link API
IAH Asset Gateway
IAH Asset Gateway
Asset Link SDK
Asset Link SDK
SIMATIC Automation Tool
SIMATIC Automation Tool
Asset Link
SNMP
Asset Link...
PROFINET
Asset Service
PROFINET...
Asset Link
Ethernet IP
Asset Link...
Data Store
Data Store
Access
Control
Access...
Identity
SIEMENS ID
Identity...
Onboarding, Job Management
Onboarding, Job Manageme...
Logging
Logging
Enterprise Applications
API usage
Enterprise Applications...
Docker ComposeX86/ARM
https
https
Field Protocols
Field Protocols
https
https
Graphical User Interface
Graphical User Interface
IAH Web App
IAH Web App
Credential Management
Credential Mana...
Credential Management Service
Credential Management Se...
Parter
Asset Links
Parter...
Industrial EdgeX86/ARM
Remote Access Agent
Remote Access Agent
Discovery Agent
Discovery Agent
Wfx Agent
Wfx Agent
Onboarding Agent
Onboarding Agent
Generic Asset Link
Generic Asset Link
Job Management Service
Job Management Service
Text is not SVG - cannot display

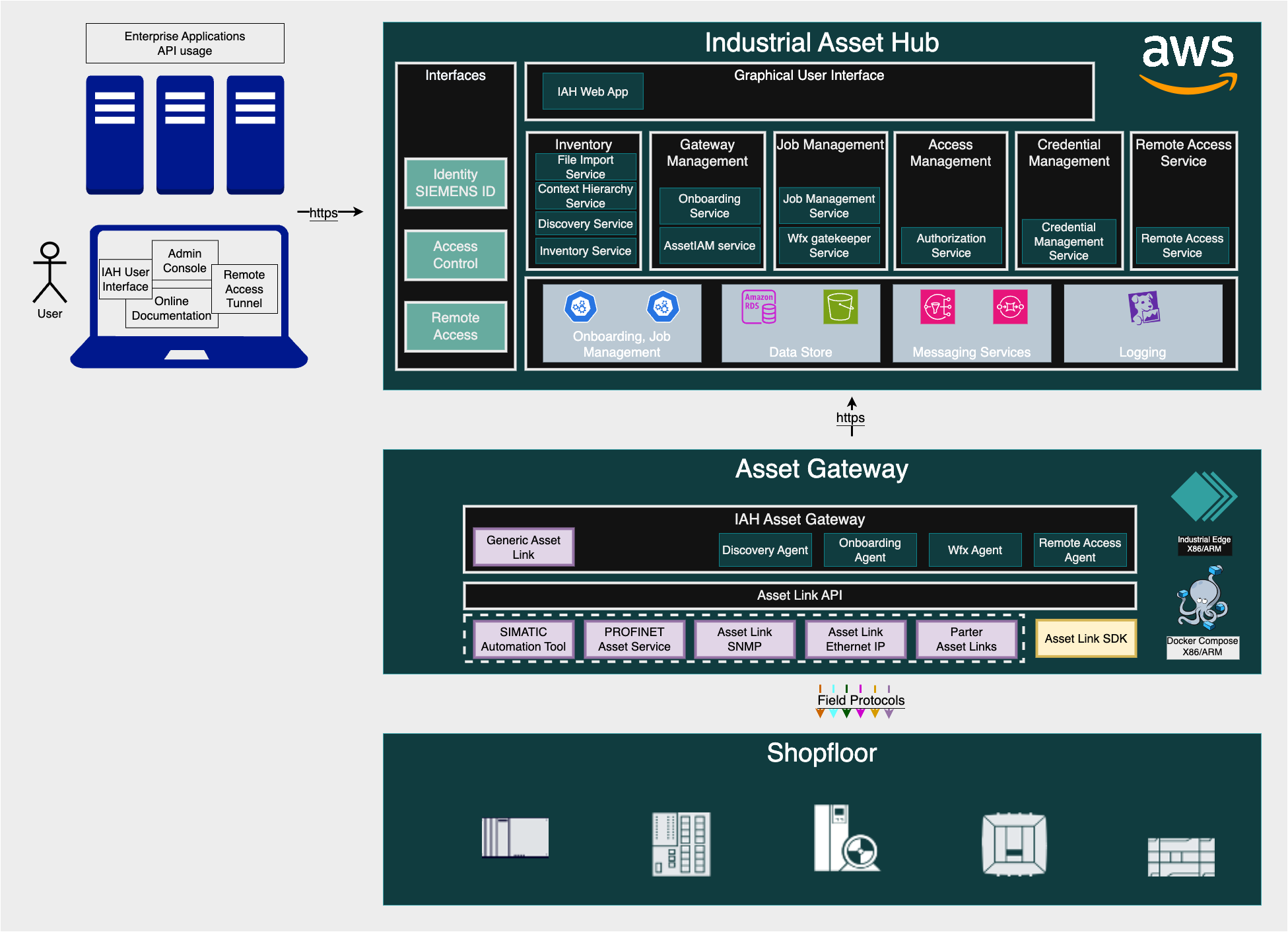

Figure: High level architecture diagram

Compatibility

The following tables provide an overview of the compatibility between the different components. All components are versioned using semantic versioning.

The compatibility between the Asset Gateway and the respective Asset links is determined by the version of the Asset link API.

Asset Gateway Asset Link API versions
>= 0.3.10 "siemens.commondevicemanagement.devicediscovery.v1"
"siemens.commondevicemanagement.firmwareupdateApi.v1"
"siemens.connectivitysuite.registry.v1"
"siemens.connectivitysuite.alarmsevents.v1"
"siemens.connectivitysuite.drvinfo.v1"
"siemens.connectivitysuite.driverevent.v1"

Xcelerator Foundation

XF component Comment
API Gateway Central entry point for applications that are part of the Xcelerator platform. IAH as self hosted service is registered at this gateway. There are two IAH applications that can be provisioned to a tenant. The API app is only to have access to the IAH cloud service APIs which is used by the Asset Gateway as well. And the UI app which provides IAH with an web interface for users.
SAM Auth Security and Access Management (SAM) is a tool that is utilized to handle authentication and authorization for Siemens cloud services. It is possible to manage users, groups, roles, policies and access keys.

IAH cloud instance

IAH Cloud Component Comment
API Gateway (Kong) Acts as central access layer to the IAH cloud services by forwarding the incoming requests to the upstream services.
IAH Auth (Kong-)Plugin Custom Kong Plugin to handle the authentication and authorization of the incoming requests. It checks that the token signature is valid, extracts relevant information from the token claims and checks that the provided roles match with those required for the requested resource.
Discovery Service Provides a REST API that can be used to create, read, and update discovery jobs. Each job is linked to a particular gateway. The service uses the WFX service to handle the interactions with jobs and to store them.
Inventory API Service Provides a REST API that can be used to create, read, update, and delete assets in the inventory.
WFX Gatekeeper Service Provides the WFX northbound and southbound REST APIs to create and read workflows as well as to create, read and update jobs. This service is needed as the WFX service is not to handle multi-tenancy. The gatekeeper maps the gateway IDs to tenant IDs to ensure that a gateway can only interact with jobs belonging to the same tenant.
WFX Service Is a lightweight, general-purpose workflow executor. Workflows can be modeled as finite state machines to describe different kind of tasks e.g. asset discovery. An instance of this workflow is called a job. These jobs will be created by an IAH cloud component and can be picked up and executed by the IAH gateway agents.
initdb PostgreSQL A Tool that can be added as an init container to a service to create a database user and a database in the PostgreSQL instance. The output can be used by the service to establish a secure connection to this database.
Remote Access Service Provides a REST API that can be used to establish remote connection to view an asset's web/ssh server.
Job Management Service Provides a REST API that can be used to retrieve all IAH jobs irrespective of type.
Credential Management Service Provides a REST API that can be used to provide credentials for assets. The corresponding schema and their credentials are also stored.

Asset Gateway

Gateway / Asset Gateway Comment
Auth Proxy Agent The auth proxy agent authenticates the Asset Gateway agents against the backend. It requests a JSON Web Token (JWT) from the SAM Auth instance. Every request from the Asset Gateway agents go to the auth proxy agent. It sets the JWT as the bearer token in the authentication header and forwards the requests to the cloud backend.
gRPC Service Registry The gateway of Industrial Asset Hub hosts the gRPC service registry as a part of the Asset Gateway application. The backend services of Industrial Asset Hub communicate with the Asset links through the Asset Gateway. All these drivers implement one or more gRPC services as there are e.g. asset discovery or firmware update. The Asset Gateway can discover a specific Asset link via the gRPC service registry to get the address to connect to of the Asset link.
Discovery Agent The agent requests cyclically for new discovery jobs. If a new job exists the agent searches in the registry for the relevant Asset link address. With this address it connects to the Asset link and perform the discovery process.

Asset links act as adapters/drivers, between the Asset Gateway and the field devices. IAH provides an Asset link SDK which can be used by device builders to speed up their own Asset link development. This SDK already includes the gRPC interfaces for the IAH use cases (e.g. discovery) so that the Asset link writer can focus on implementing the content of the features.

Industrial Asset Hub backend APIs

Inventory API

Discovery API

GW Onboarding API

Asset IAM API

Authorization API

Workflow Executor API

Remote Access API

Job Management API

Credential Management API

Download Specifications

A complete package of API specifications can be obtained here: API_Specs

Programmatic Access

To programmatically access the Industrial Asset Hub APIs, you need to use the correct API URL(https://cloud.eu1.sws.siemens.com/api/assethubapi/v1/your-endpoint) and obtain a technical token. This token can be acquired either from a server user. Below are the steps to obtain a token and use it to access the API:

Obtain a Token from a Server User

  1. Go to the Xcelerator Admin Console and create a server user and download the credentials.
  2. Send a POST request to the token service with your server user credentials.
  3. The response will include a JSON Web Token (JWT).

    curl https://iahprod.eu1.sws.siemens.com/oauth/token \
     -X POST \
      --header "Content-Type: application/x-www-form-urlencoded" \
      -d grant_type=client_credentials \
      -d client_id=<clientId> \
      -d client_secret=<clientSecret>


Use the Token to Access the API

  1. Include the JWT in the Authorization header of your API requests.

    curl --header "Authorization: Bearer your_jwt_token" https://cloud.eu1.sws.siemens.com/api/assethubapi/v1/your_endpoint


By following these steps, you can authenticate and interact with the Industrial Asset Hub APIs programmatically.
